ROLL STABILITY APPARATUS

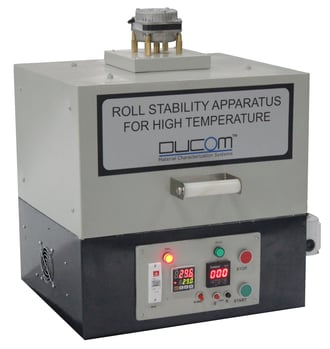

About the Roll Stability Tester

Ducom Roll Stability Tester is used to simulate the changes in consistency of lubricating grease between rollers and outer race of a bearing.

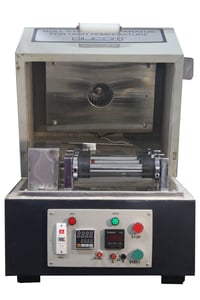

The test cylinders are loaded with grease uniformly on the inside wall and a weighted roller is placed inside the cylinder. The test cylinders mounted horizontally upon a set of driving and guide wheels which rotate the cylinder at the set rpm. The temperature in the test area is controlled precisely  using a closed loop temperature controller.

Technical Specifications

• Rotational speed: up to 300 rpm
• Temperature range: up to 200°C
• Preset timer: 1 minutes to 100 hours
• Temperature control accuracy: ±1°C

Features

• Designed for long duration test at high temperature

• Uniform heating arrangement with good thermal insulator chamber

• Bench top model integrated with electronic controller

• Automated cut-off when upper chamber hood is removed

Test Standards

• ASTM D1831: Standard Test Method for Roll Stability of Lubricating Grease
• ASTM D 7342: Standard Test Method for Prolonged Worked Stability of Lubricating Grease in Presence of Water (Water Stability Test)
