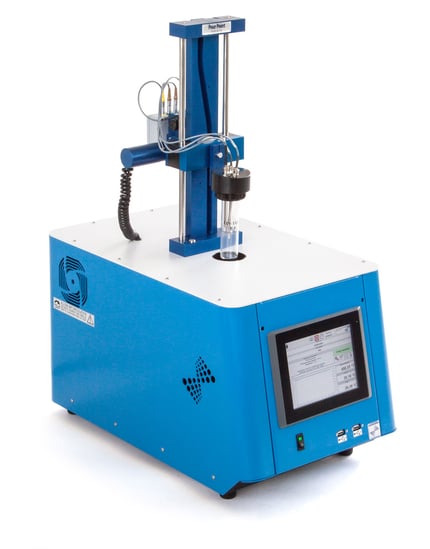

POUR POINT TESTER (DPP)

Technical Specifications

MEASURING PARAMETERS

• Temperature: °C/°F
• Measuring Range: +80°C to -80°C
• Resolution: 0.06°C
• Accuracy: ±0.1°C
• Repeatability/Reproducibility: as per standard methods or better

TEMPERATURE MEASUREMENT

PT100, Class A

OPERATING RANGE

• Ambient to 35°C
• Max. R.H. 80%

COOLING SYSTEM

• Single stage (for temperatures up to -40°C / 1)
• Double stage (for temperatures up to -80°C / 2)

DIMENSIONS AND WEIGHT

• 66 x 60 x 80 cm (WxDxH), 60 kg (up to 6 heads available)

ELECTRICAL SUPPLY

• 220V + 15% / 50 to 60 Hz (or) 115V + 15% / 60 Hz

Features

• Integrated Touchscreen Panel PC: 12-inch, TFT/LCD, high-resolution display
• Automated Operation: Delivers precise, consistent results, reducing human error
• User-Friendly Software Interface: Customize analysis parameters and methods
• Storage Capacity: users can store data files in an Excel-compatible format

MEASURING POUR POINT DEVICES

• Mechanical arm adjusts the position of the test jar

COOLING SYSTEM

• Integrated CFC-free motor compressors

SAFETY DEVICES

• Pressure controller for compressor
• Thermo-switch for each cooling/heating jacket
• Compressors equipped with internal overload devices

Test Standards

ASTM TEST METHODS

• ASTM D97: Standard Test Method for Pour Point of Petroleum Products
• ASTM D5853: Standard Test Method for Pour Point of Crude Oils
• ASTM D5950: Standard Test Method for Pour Point of Petroleum Products (Automatic Tilt Method)

IP AND ISO METHODS

• ISO 3016: Petroleum and related products from natural or synthetic sources — Determination of pour point
• IP 15: Petroleum products - Determination of pour point
• IP 441: Determination of the pour point of crude petroleum
