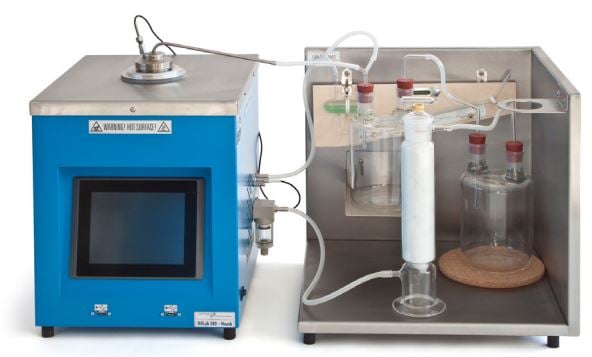

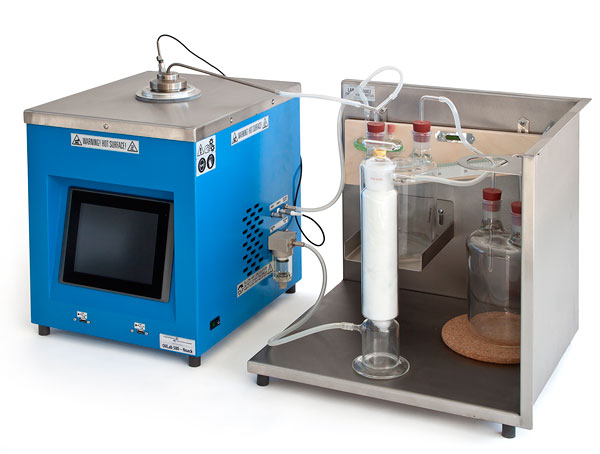

Noack Volatility Tester

About the Noack Volatility Tester

The sample is weighed and heated in an enclosed crucible for 1 hour. Electronic controller ensures that a vacuum is constantly maintained at -2 mbar allowing evaporated sample to  removed from the crucible.

After the test is complete, the sample is cooled and weighed again. The difference is reported in percentage, and represents the evaporation loss by the Noack Method.

• Method A: bath is controlled at 250°C
• Method B: the sample is controlled at 245.2°C

Technical Specifications

MEASURING PARAMETERS

• Temperature: °C/°F
• Measuring Range: +0°C to +320°C
• Testing Range: 225°C to +275°C
• Resolution: 0.01°C
• Accuracy: ±0.1°C
• Repeatability/Reproducibility: as per standard methods or better

TEMPERATURE MEASUREMENT

• PT100, Class A

OPERATING RANGE

• Ambient to 35°C
• Max. R.H. 80%

DIFFERENTIAL PRESSURE

• Differential Pressure: 20 mm H20 (Automatic)
• Accuracy: 1%

VACUUM PUMP

• Equipped with Kalrez valve and inlet filter to remove product residue
• Electronic control system maintains -2 mbar during test
• Low voltage power supply

DIMENSIONS AND WEIGHT

• 40 x 45 x 45 cm (WxDxH), 22 kg

ELECTRICAL SUPPLY

• 220V + 15% / 50 to 60 Hz (or) 115V + 15% / 60 Hz

Test Standards

• ASTM D5800: Standard Test Method for Evaporation Loss of Lubricating Oils by the Noack Method.
• IP42: Determination of the evaporation loss of lubricating oils (particularly engine oils). Procedure A uses the Noack evaporative tester equipment. Procedure B uses the automated non-Woods metal Noack evaporative apparatus.

Features

• Integrated Touchscreen Panel PC: 8-inch, TFT/LCD, high-resolution display
• Automated calibration: Display, record and point calibration history of each temperature probe
• Automated control of vacuum pump.
• Automatic calculation of evaporation loss
• Does not use toxic Wood's metal.
• Over temperature protection.
