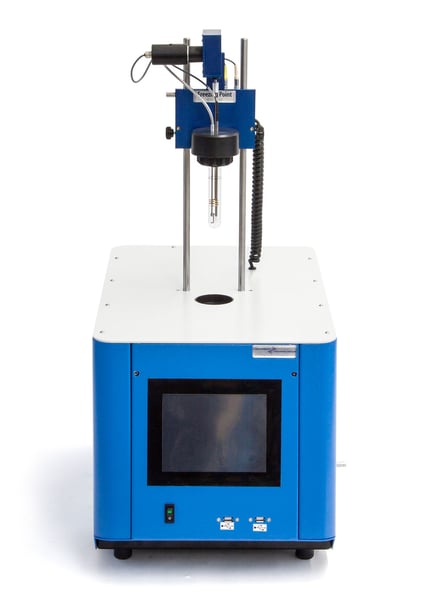

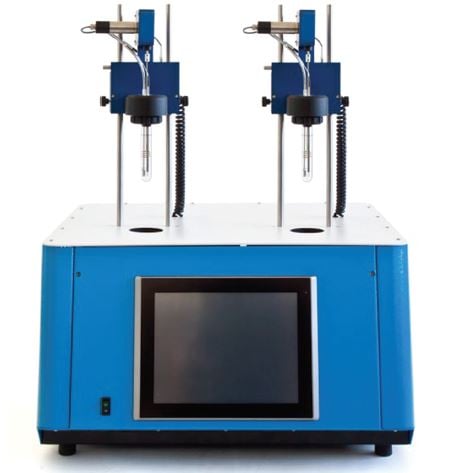

Freezing Point Tester (FPT)

Technical Specifications

MEASURING PARAMETERS

• Temperature: °C/°F

• Measuring Range: +80°C to -90°C (410/2 SA)

• Resolution: 0.01°C

• Accuracy: ±0.1°C

• Repeatability/Reproducibility: as per standard methods or better

TEMPERATURE MEASUREMENT

• PT100, Class A

OPERATING RANGE

• Ambient to 32°C

• Max. R.H. 80%

STIRRER

A micro-motor drives all the mechanical system 3 coils stirrer made of brass.

MEASURING DEVICES

• Freezing Point Principle: According to the methods, the sample is cooled down and stirred. The solid hydrocarbon crystals formation are detected by means of a light beam through fiber optic reflected thanks to a mirror. As soon as crystals are detected, the sample is warmed up until their complete disappearance.
• Freezing Point Device: Light pulsed emission on I.R spectrum through a coaxial fibber optic. Coaxial fibber optic equipped with a mirror

DIMENSIONS AND WEIGHT

• 34 x 60 x 80 cm (WxDxH), 34 kg

ELECTRICAL SUPPLY

• 220V + 15% / 50 to 60 Hz (or) 115V + 15% / 60 Hz

Test Standards

• ASTM D852: Standard Test Method for Solidification Point of Benzene
• ASTM D1177: Standard Test Method for Freezing Point of Aqueous Engine Coolants
• ASTM D1655: Standard Specification for Aviation Turbine Fuels
• ASTM D2386: Standard Test Method for Freezing Point of Aviation Fuels
• ASTM D5972: Standard Test Method for Freezing Point of Aviation Fuels (Automatic Phase Transition Method)
• ASTM D7154: Standard Test Method for Freezing Point of Aviation Fuels (Automatic Fiber Optical Method)
• IP 16: Determination of the Freezing Point of Aviation Fuels - Manual Method
• IP 435: Determination of the Freezing Point of Aviation Turbine Fuels by the Automatic Phase Transition Method
• IP 528: Determination of the Freezing Point of Aviation Turbine Fuels - Automated Fiber Optic Method
• IP 529: Determination of the Freezing Point of Aviation Fuels - Automatic Laser Method
• ISO 3013: Petroleum Products - Determination of the Freezing Point of Aviation Fuels

Features

AUTOMATED SYSTEM

Fully computer-controlled system with software to monitor and control the test parameters.

COOLING SYSTEM

Insulated cooling jackets

Integrated CFC-free, double stage system

SAFETY FEATURES

Pressure controller for 1st stage and 2nd stage motor compressor

Thermostat for 2nd stage activation

Thermo-switch for each cooling / heating jacket

Motor compressors equipped with internal overload devices
