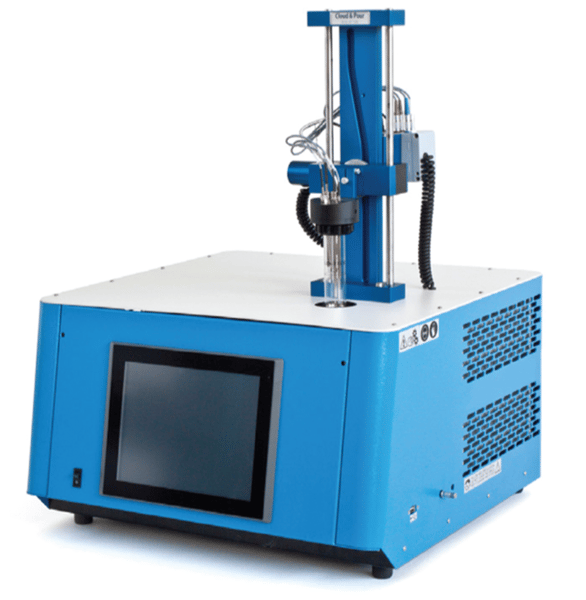

Cloud and Pour Point Tester

Technical Specifications

MEASURING PARAMETERS

Temperature: °C/°F
Measuring Range: +80°C to -80°C
Resolution: 0.06°C
Accuracy: ±0.1°C

TEMPERATURE MEASUREMENT

PT100, Class A

OPERATING RANGE

Ambient to 35°C
Max. R.H. 80%

MEASURING DEVICES

Cloud: Light-pulsed emission, I.R. spectrum; coaxial fiber optic system
Pour Point: PT100 Probe; mechanical arm adjusts the position of the test jar

COOLING SYSTEM

Integrated CFC-free motor compressors
Single stage (for temperatures up to -40°C / 1)
Double stage (for temperatures up to -80°C / 2)
Equipped with an automatic energy power save system

SAFETY DEVICES

Pressure controller for compressor
Thermo-switch for each cooling/heating jacket
Compressors equipped with internal overload devices

DIMENSIONS AND WEIGHT

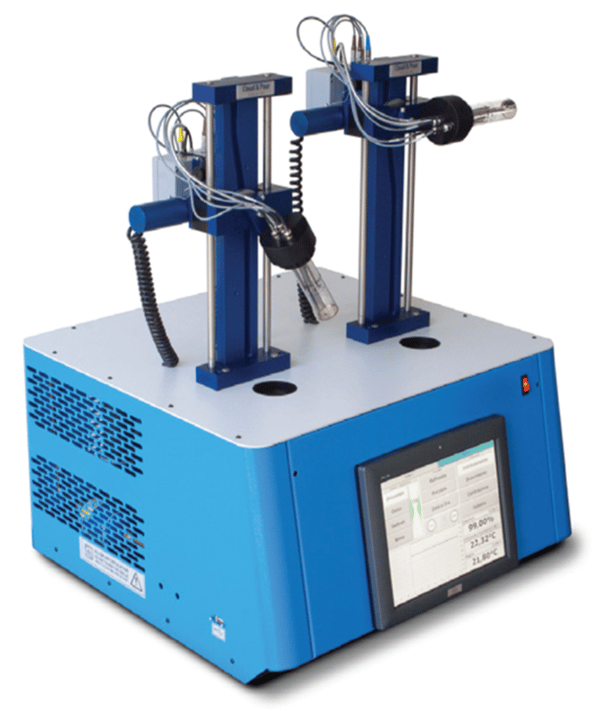

66 x 60 x 80 cm (WxDxH), 60 kg (up to 6 heads available)

ELECTRICAL SUPPLY

220V + 15% / 50 to 60 Hz (or) 115V + 15% / 60 Hz

Test Standards

CLOUD POINT

ASTM D2500: Standard Test Method for Cloud Point of Petroleum Products and Liquid Fuels
ASTM D5771: Standard Test Method for Cloud Point of Petroleum Products and Liquid Fuels (Optical Detection Stepped Cooling Method)
ASTM D5772: Standard Test Method for Cloud Point of Petroleum Products and Liquid Fuels (Linear Cooling Rate Method)
ASTM D5773: Standard Test Method for Cloud Point of Petroleum Products and Liquid Fuels (Constant Cooling Rate Method)
IP 219: Petroleum products - Determination of cloud point
IP 444: Determination of the cloud point of petroleum products - Automatic stepped cooling method
IP 445: Determination of the cloud point of petroleum products - Automatic linear cooling rate method
IP 446: Determination of the cloud point of petroleum products - Automatic constant cooling rate method
DIN EN 23015: Determination Of Cloud Point Of Petroleum Products (ISO 3015:1992)
ISO 3015: Petroleum and related products from natural or synthetic sources — Determination of cloud point

POUR POINT

ASTM D97: Standard Test Method for Pour Point of Petroleum Products
ASTM D5853: Standard Test Method for Pour Point of Crude Oils
ASTM D5950: Standard Test Method for Pour Point of Petroleum Products (Automatic Tilt Method)
ISO 3016: Petroleum and related products from natural or synthetic sources — Determination of pour point
IP 15: Petroleum products - Determination of pour point
IP 441: Determination of the pour point of crude petroleum

Features

Integrated Touchscreen Panel PC: 12-inch, TFT/LCD, high-resolution display
Convenient, Fully-Integrated Testing
Performs both Cloud and Pour Point
Testing with the same accuracy of our individual model
