AIR JET EROSION TESTER

A Solid Particle Erosion (SPE) Tester that is capable of conducting erosions tests across a very wide range of erosion conditions.

The Ducom Air Jet Erosion Tester is a unique and a feature rich erosion tester that is capable of testing bulk materials and coatings under erosion. Its capabilities range from subjecting sample to tightly controlled gentle erosion to some of the harshest erosion conditions seen on the field.

Contact Us

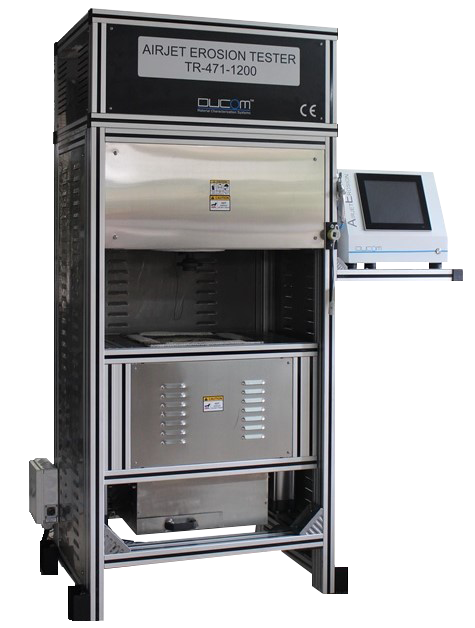

AJT at 1000 C

Ducom Air Jet Erosion Tester (AJT) - Animation GIF



Technical Specifications

  • Particle Velocity: 30 to 100 m/s
  • Erodent Feed Rate: 1 to 10 g/min
  • Angle of Impingement: 15°, 30°, 45°, 60°, 75° & 90°
  • Nozzle Diameter: 1.5 mm, standard (others on request)
  • Sample Size: 25 x 25 x 5 mm; 20 X 20 X 5 mm for 15 and 30 degree angles (Other sizes on request)
  • Erodent Hopper Capacity: 2 liters (Max)
  • Temperature Options: Ambient or 1,000 deg C (consult Ducom for higher temperature options)
  • Standard Erodent: 50 µm Alumina Al2O3; Silica

Test Standards

  • ASTM G76: Standard Test Method for Conducting Erosion Tests by Solid Particle Impingement Using Gas Jets
  • ASTM G211: Standard Test Method for Conducting Elevated Temperature Erosion Tests by Solid Particle Impingement Using Gas Jets

Application Examples

  • Erosion mechanism of gas turbine blades in a power plant.
  • Ranking of wear resistant coatings for edges of turbine blades and helicopter blades.
  • Wear resistant boiler tubes exposed to fly ash in coal fired power plants.
  • Erosion resistant coatings in pipes and bends used in pneumatic conveyors.
  • Erosion protective paints used in the transportation industry

Product Features

ADJUSTABLE IMPINGEMENT ANGLE

Solid particle erosion tests use fine particles as a test consumable. The Ducom Air Jet Erosion Tester is a fully self contained setup that minimizes particle escape. It has a sealed hopper for storing particles before the test. It also has a built in particle collector, complete with a filter to minimize particles escaping into the air.

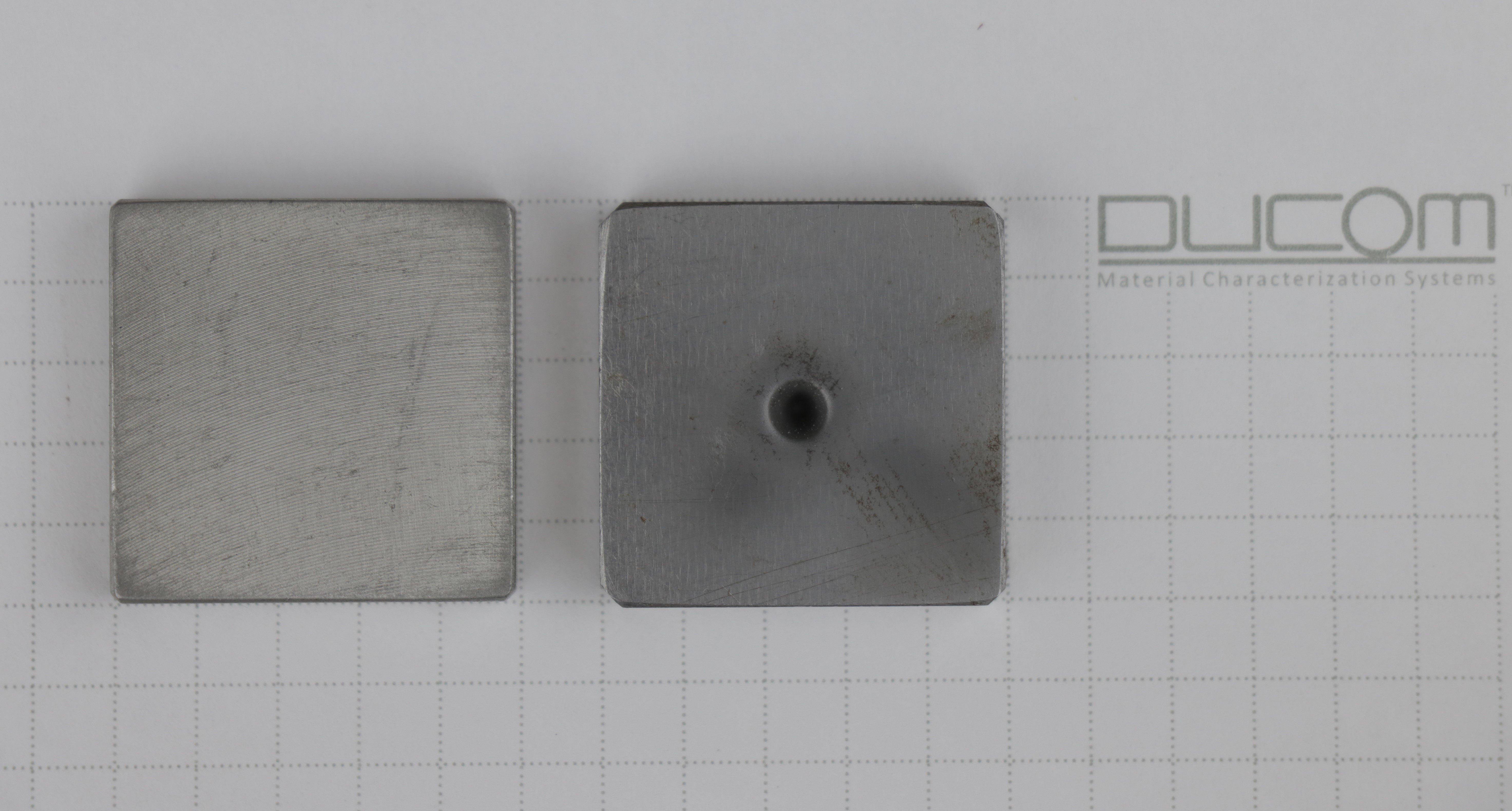

Ducom Air Jet Erosion Samples - View 1

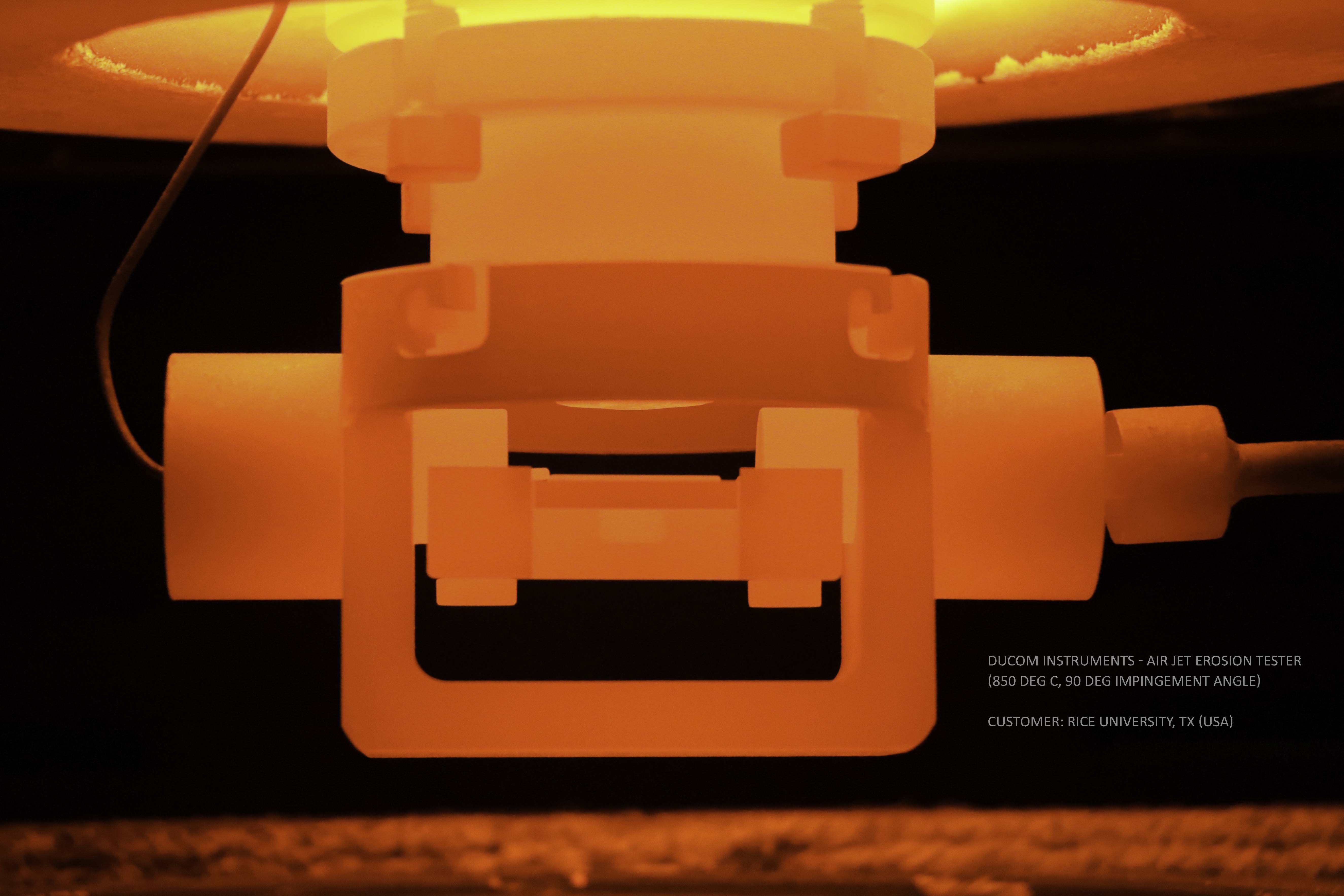

Ducom Air Jet Erosion Tester - Open Test Area - 850 Deg C

TEMPERATURE CONTROL

Product Feature Snapshot Here

A dust preventive chamber with a hot air exhaust system ensure safe working conditions. The pneumatic control system ensures automatic open and closure of the heat furnace. Sufficient insulation prevent direct exposure to high temperature.

PARTICLE FLOW CONTROL

Particle flow rate is controlled by a motor, gear head and belt assembly connected to below a hopper. High flow rate of particles up to 300 g/min can be achieved by using a high-speed motor.

The furnace is used to heat the samples and the air carrying the particles is heated by a joule heating technique. A maximum temperature of 1200 °C (specimens and air carrying the particles) can be achieved.

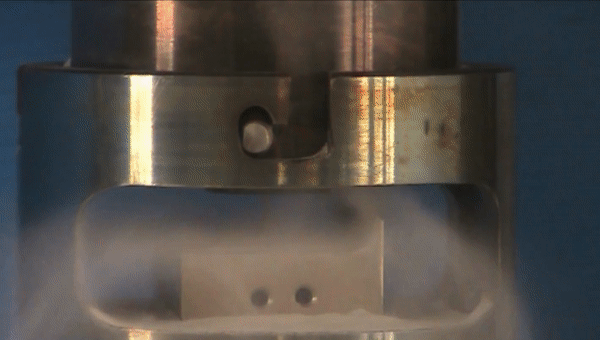

AJE_Test chamber

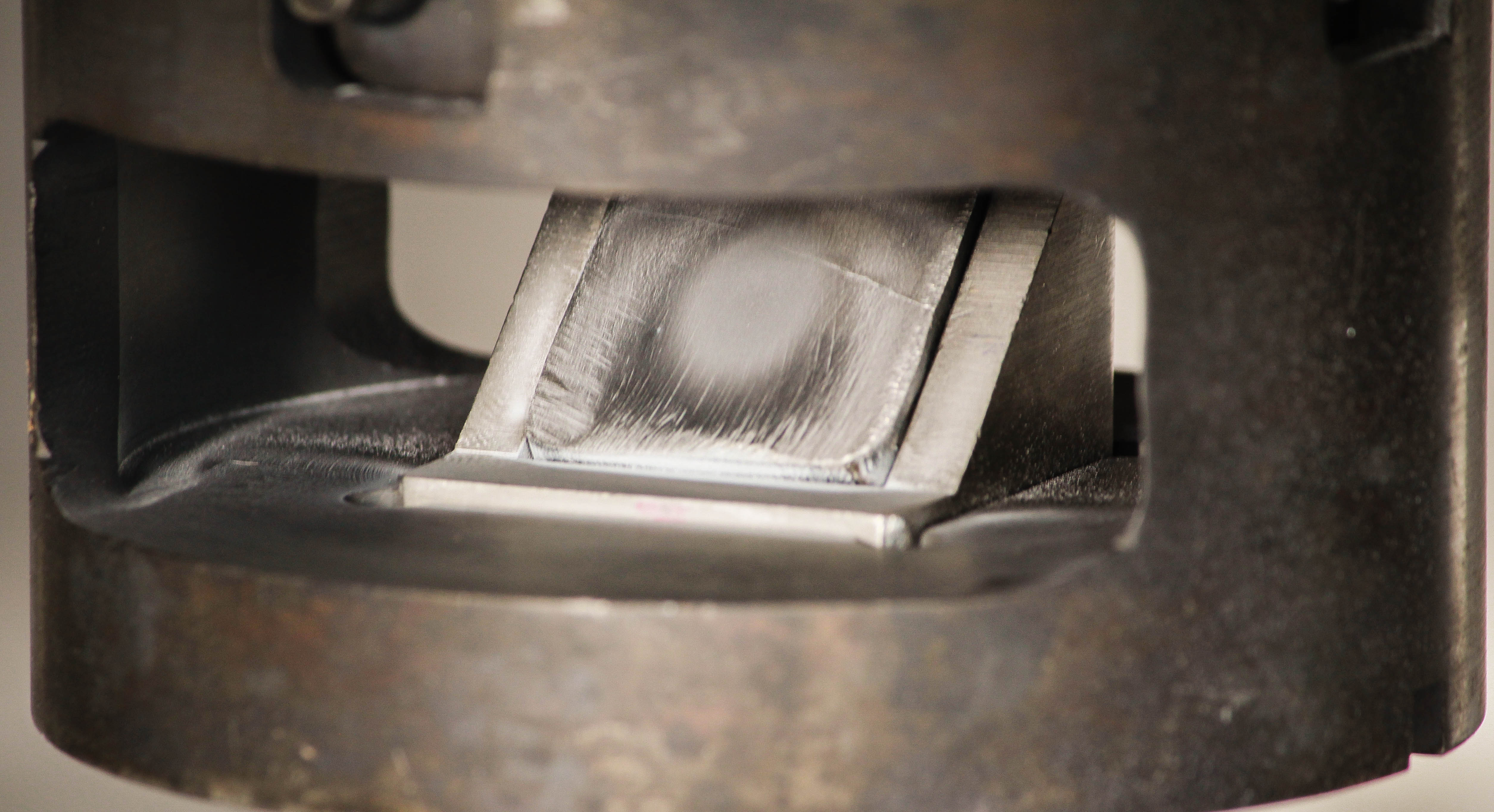

Eroded specimen in the test area

BUILT-IN PARTICLE COLLECTOR AND AIR FILTER

Solid particle erosion tests use fine particles as a test consumable. The Ducom Air Jet Erosion Tester is a fully self contained setup that minimizes particle escape. It has a sealed hopper for storing particles before the test. It also has a built in particle collector, complete with a filter to minimize particles escaping into the air.
